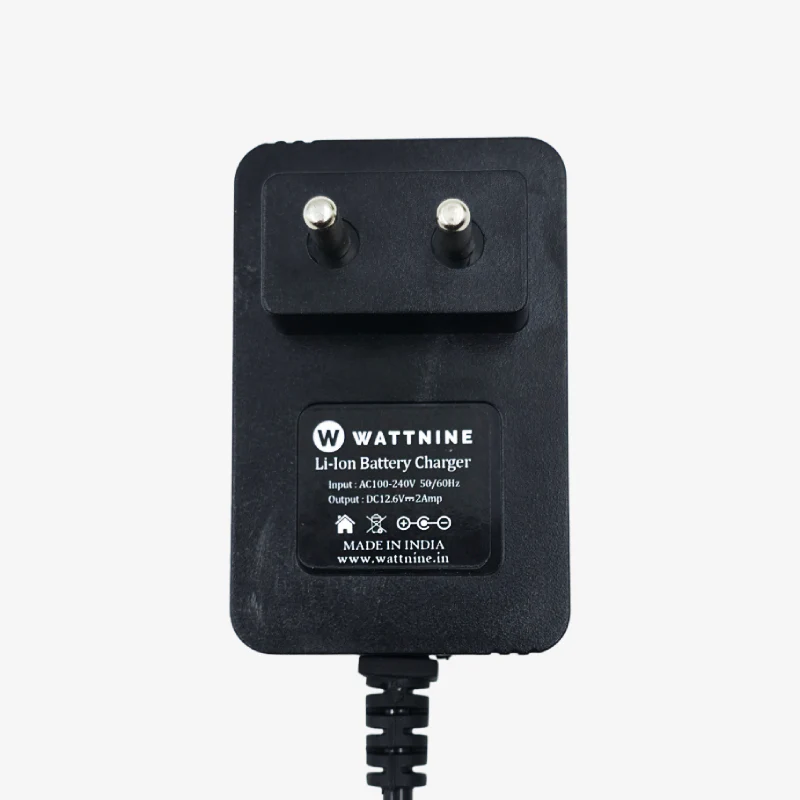

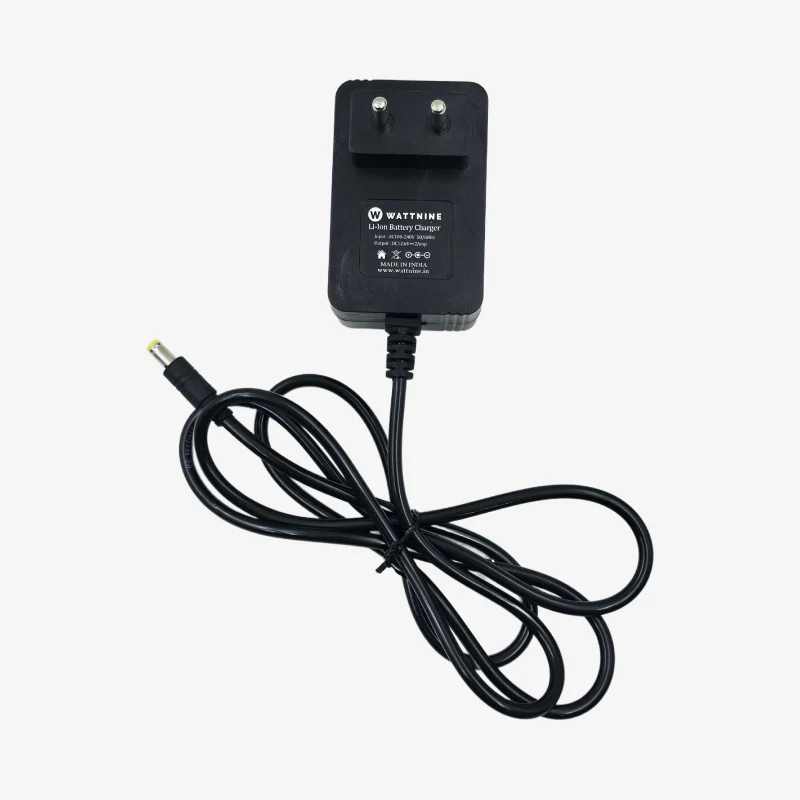

- This 12V 2 Amp Power Adapter takes an AC INPUT of 100-240V and gives 12.6V 2A DC output. Comes in black color and the plastic case is ABS+ pure PC Fireproof materials.
Applications:
Lithium ion Battery Charger (SMPS)
Features:
- Excellent Quality
- Short Circuit, Over Voltage & Over Current Protection
- Incredibly Low Fault Rates
- No Minimum Load
- This power supply is a regulated Center Positive power supply
- It’s plug design is for Indian power socket so, no plug converter is required
- Compact size & light weight
- High Reliability
- Regulated Stable Voltage
- Stabilized Output, low ripple & low interference
- Single Output Voltage
- High Efficiency & low energy consumption
Specifications :
- Product Size : 74.5 mm (L) x 43.5 mm (B) x 31 mm (H) (excluding pin height)
- height of pin is 22 mm
- Input Rated Voltage : 86Vac～264Vac
- Input Frequency Range : 50Hz～60Hz
- Input Current : 0.5A(Max)
- Input Inrush Current : <30A
- Efficiency : level IV
- DC Output Voltage : 12.6v ± 5%
- DC Output Rated Current : 2A
- DC Output Power : 25w
- Ripple and Noise : ≤80Mv
- Turn On Delay Time : ≤3S (AC:110V and full load)
- Standard : ROHS, CE, UL, ISO
- DC cable length : with 1.25 m DC cable DC connector 5.5*2.5 mm connector
- Protection : short / Over current protection, over voltage protection ,over temperature protection , CC-CV.
- Leakage Current : ≤5Ma
- Operating Temperature Range : – 10°C – +55°C
- Storage Temperature : – 25°C – +85°C
Also Checkout:
WATTNINE 8.4V 2A Battery Charger
WATTNINE 11V 2A Battery Charger
WATTNINE 12.6V 2A Battery Charger
WATTNINE 16.8V 2A Battery ChargerPackage Includes :-
1x 12.6V 2A DC Power Supply Adapter
