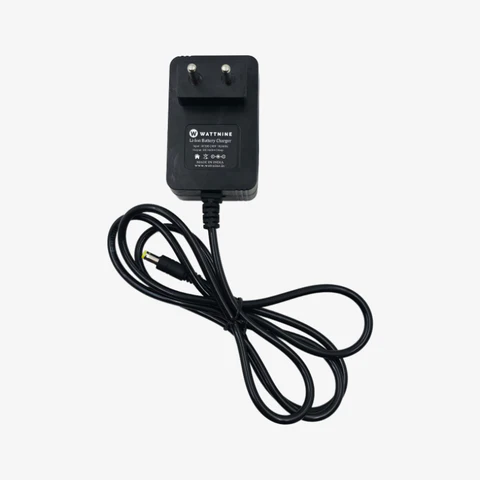

The WATTNINE 14.6V 2A Wall Mount 4S LFP Lithium Battery Charger with CC/CV is a reliable and efficient charger for 4-cell (4S) LiFePO₄ battery packs. It uses Constant Current / Constant Voltage charging, which first charges at a fixed current and then maintains a stable voltage to safely complete charging. This ensures fast, balanced charging, extends battery life, and protects against overcharge and overcurrent.
Features:
- Excellent Quality
- Short Circuit, Over Voltage & Over Current Protection
- Incredibly Low Fault Rates
- No Minimum Load
- Compact size & light weight
- High Reliability
- Regulated Stable Voltage
- Stabilized Output, low ripple & low interference
Specifications:
- Input Rated Voltage: 86Vac～264Vac
- Input Frequency Range: 50Hz～60Hz
- Input Current: 0.5A (Max)
- Input Inrush Current: <30A
- Efficiency: Level IV
- DC Output Voltage: 14.6V ± 5%
- DC Output Rated Current: 2A
- DC Output Power: 29W
- Ripple and Noise: ≤200mV
- Turn On Delay Time: ≤3S (AC:110V and full load)

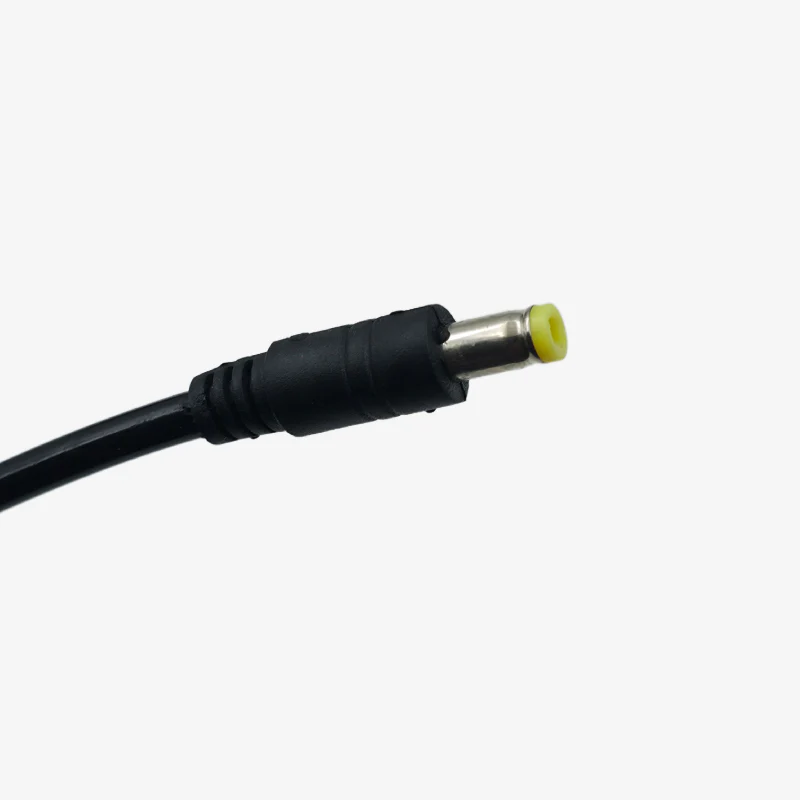

- DC Cable Length: 1.5 m DC cable with 5.5×2.5 mm connector
- Protection: Short circuit / Over current / Over voltage / Over temperature protection, CC-CV mode
- Leakage Current: ≤5mA
- Operating Temperature Range: -10°C to +55°C
- Storage Temperature: -25°C to +85°C
Also Checkout:
WATTNINE 8.4V 2A Battery Charger
WATTNINE 11V 2A Battery Charger
WATTNINE 12.6V 2A Battery Charger
WATTNINE 16.8V 2A Battery Charger
Package Includes:
1 × WATTNINE 14.6V 2A Wall Mount 4S LFP Lithium Battery Charger with CC/CV
